iso ul New UL UniFlow Fume Hoods

Polypro Trace Metals Fume Hoods

UUniFlow Polypro Trace Metals fume hoods are designed for applications where no metal can be present, these hoods feature a totally non-metallic construction and are available in sizes of 48”, 60”, 72” and 96” widths and 30” or 36” depths.

UniFlow Superstructure features a welded one piece polypropylene fume chamber with integral worksurface with baffle and exhaust collar, creating a chemical resistant........... (NO RUST), dual wall construction. Meets NFPA 45.. requirements for flame spread.

Fume Chamber Polypro surface is chemical resistant
white, glass smooth for ease of cleaning & light reflectivity.

VaraFlow Baffle System constructed of same polypropylene, maintains uniform air flow thru the fume chamber to exhaust collar outlet.

Energy Efficient vapor proof non-metallic light fixture with light switch on left column, with PVC conduit and junction box.

Access Panel removable to access ducting connections and electrical services from a single point PVC electrical box,115V/60Hz AC operation.

Full 28” Viewing Height ease of access and viewing tall apparatus setup. Sash is 3/16 thick tempered safety glass, horizontal moving with PVC frame and track.

Angled Picture Frame Opening the aerodynamic face opening with air foil provides uniform air flow into the fume chamber and thru the VaraFlow baffle system to the exhaust collar.

Air Flow Monitor continuously monitors face velocity air flow. Meets ANSI and OSHA requirements. Optional equipment,
Cat. No. 51403

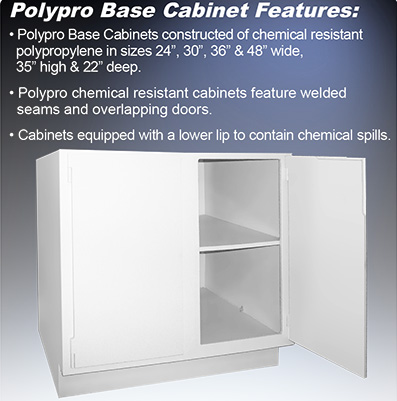

Polypro Base Cabinets

Polypro Cabinet Dimensions

Cabinet Width 24” 30” 36” 48”
Cat. No. 80241 83011 80311 80411
Side Rear Filler Panel (7") 84112 (13") 84113
Polypro Cabinet Vent Kit Cat. No. 81000

UniFlow Polypro Trace Metals Fume Hood Cat. No. 25041, shown with optional polypro cabinet and fixtures.

Fume Hood Face Velocity

The recommended face velocity for efficiency & safety is 100
fpm. Lower face velocity may compromise user safety.

The Trace Metals Fume Hood incorporates (4) horizontal sliding sashes on (2) tracks, the maximum opening is 50%. which
corresponds to a 50% savings in cfm. Should the entire front opening need to be accessed the horizontal sliding panels
may be removed for equipment set up


Polypro Trace Metals Fume Hood
Sash Management & Design
(100 fpm with 2 sashes open)

Size hood 48” 60” 72” 96”
1/2 open cfm 400 500 600 800

Polypro Trace Metals Fume Hoods

UNIFLOW POLYPRO TRACE METALS DESCRIPTIONS

Hood Depth B 48" 60" 72" 96"
1. Uniflow Polypro Trace Metal Laboratory Fume Hoods:Welded one piece polypro fume chamber with integral work surface, baffle and exhaust collar. Picture frame sash opening with horizontal sliding clear tempered safety glass sash panels with chemical resistant PVC framing and track and aerodynamic sash lift. Vapor-proof light fixture and switch pre-wired to single point PVC junction box, 115V/60Hz AC, All electrical components U.L. listed. Optional electrical services and LED lighting.

30"

25041

25051

25061

25081

36"

25141

25151

25161

25181

2. Polypro Trace Metals Exhaust Blowers: High efficiency impellers produce low power consumption, reduced operating costs and quiet operation. 20 forward curved blades, in fire retardant
polypropylene. Non-static & oil resistant V-belt, cast iron
pulleys, adjustable pulleys available, adjustment for
tensioning & belt replacement. 230V explosion proof, non sparking, chemical resistant for hostile or hazardous environments. 115V single phase or three phase.

(For 48” hoods) 1/2 HP Blower 400 cfm @ 1” SP   51495
(For 60” hoods) 1/2 HP Blower 500 cfm @ 1” SP     51496
(For 72” hoods) 3/4 HP Blower 600 cfm @ 1” SP       51497

(For 96” hoods) 1 HP Blower 800 cfm @ 1” SP

        51498

Polypro Trace Metals Fume Hoods

Tracemetals Family Drawing
