iso ul New UL UniFlow Fume Hoods

SE Dual Entry Fume Hoods

UniFlow SE Dual Entry Air By-Pass hoods are ideal for demonstrations or applications where observation and access is required from both sides of the fume hood. Dual Entry hoods are available in 48”, 60”, 72”, & 96” widths and in 30”, 36” & 48” depths. They can be positioned on an island on in peninsular locations. Dual Entry hoods can be located on a common wall of two rooms with accessibility from either room.

UniFlow Superstructure exclusive unitized dual wall construction for superior chemical resistance (NO RUST), strength, and durability. One piece interior fume chamber to be glass-smooth with VaraFlow baffle system & bell shaped exhaust collar. Meets NFPA-45 classification with flame spread of less than 25 per ASTM E-84.

Access Panel removable to access ducting connections, plumbing & electrical services from a single point electrical box, 115V/60Hz AC operation.

Full 28” Viewing Height Sashwith 28” sash opening height for ease of access and viewing tall apparatus setup. Sash is 3/16 thick tempered safety glass, with chemical resistant non-metallic PVC framing, track, and aerodynamic sash lift (horizontal sash). Sash handle for efficient air flow and ease of
movement. Standard horizontal sash, optional vertical sash, specify sash for each side.

Angled Picture Frame Opening the aerodynamic face opening with air foil provides uniform air flow into the fume chamber and thru the VaraFlow baffle system to the bell shaped exhaust collar.

Air Flow Monitor with Repeater (Optional equipment) flush mounted air flow Monitor for Dual Entry Fume Hoods only. It features a back lit display which displays the air flow velocity or Air flow status. Cat No. 51405

Plumbing Fixtures are color coded to specific service.

Epoxy or Phenolic Work Surfaces (Optional equipment)

Fume Hood Base Cabinet (Optional equipment)
UniFlow SE Dual Entry Fume Hood Cat. No.12160
shown with optional epoxy resin worksurface, and base cabinets,

Click for Dual Entry Electronic Plan-A-Hood
Horizontal Sash Verticle Sash Side Window
HORIZONTAL SASHES
The standard sash for HEMCO dual entry fume hoods. The maximum sash opening for the horizontal sash is 1/2 that of the vertical sashes. The smaller opening, means less air exhausted resulting in energy savings.
OPTIONAL VERTICAL SASHES
The optional sash for HEMCO dual entry fume hoods. The sash may be lifted to the completely open position for maximum access thru the fume chamber. Sash stops available.
OPTIONAL SIDE VIEW WINDOWS
Can be installed on either or both sides.

Side View Window 16" X 20" - Cat. No. 51620
Side View Window 20" X 24" - Cat. No. 52420

SE Dual Entry Fume Hoods

UNIFLOW SE DUAL ENTRY DESCRIPTIONS

Hood Depth B

Fume Hood Width "A"
1.SE Dual Entry Bypass CAV Hood 30” Depth: Superstructure to be modular
composite chemical resistant FRP non-metal construction. Interior fume chamber to be glass-smooth with bell shaped exhaust collar. Picture frame sash opening in front with (4) horizontal moving sashes constructed of clear tempered safety glass with chemical resistant PVC framing, track. Vapor proof light fixture and control switch are wired to a single point junction box. 115V/60Hz, AC All electrical components are U.L. listed.

48"

60"

72"

96"

30'

12140

12150

12160

12180

36"

12340

12350

12360

12380

48"

12240

12250

12260

12280

2. Vertical Moving Sash Option: Add suffix to catalog number.

VS-4

VS-5

VS-6

VS-8

3. Epoxy Resin Work Surface: Ideal for high concentrations of solvents, acids and alkalies. Excellent scratch and wear resistance. Dished to contain spillage. 1 -1/4" thick, color: black.

30” deep worksurface

20435

20535

20635

20835

36” deep worksurface

20455

20555

20655

20855

48” deep worksurface

20445

20545

20645

20845

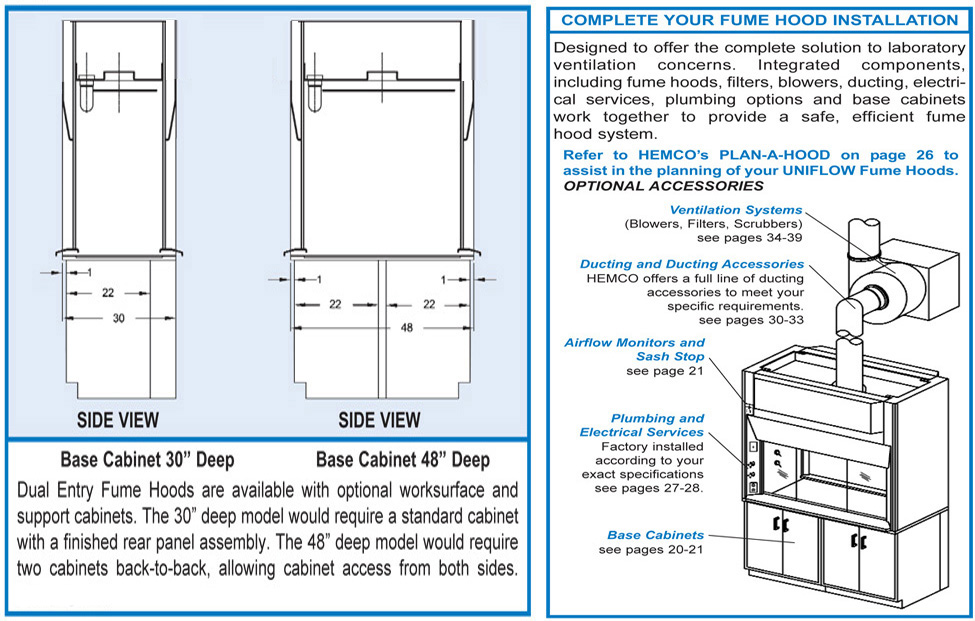

4. 30” Base Cabinet Assembly:consists of cabinet(s) & 8" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view A)

28" deep - cabinet access from one side only

50430

50530

50630

50830

5. 36” Base Cabinet Assembly: consists of (2) cabinets & 14" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view A)

34" deep - cabinet access from one side only

50436

50536

50636

50836

6. 48” Base Cabinet Assembly: consists of (4) cabinets and 2" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view B)

46" deep - cabinet access from both sides

50448

50548

50648

50848

LE Dual Entry Fume Hoods

UniFlow LE Dual Entry Air By-Pass hoods are ideal for demonstrations or applications where observation and access is required from both sides of the fume hood. Dual Entry hoods are available in 48”, 60”, 72”, & 96” widths and in 30”, 36” & 48” depths. They can be positioned on an island on in peninsular locations. Dual Entry hoods can be located on a common wall of two rooms with accessibility from either room.

UniFlow LE Dual Entry Hood Cat. No. 35631
shown with optional epoxy resin worksurface, fixtures, and base cabinets.
UniFlow Superstructure exclusive unitized dual wall construction for superior chemical resistance (NO RUST), strength, and durability. Meets NFPA-45 classification with flame spread of less than 25 per ASTM E-84.

Access Panel removable to access ducting connections and electrical services from a single point electrical box,115V/60Hz AC operation.

Full 28” Viewing Height with 28” sash opening height for ease of access and viewing tall apparatus setup. Sash is 3/16 thick tempered safety glass, with chemical resistant non-metallic PVC framing, track, and aerodynamic sash lift (horizontal sash). Sash handle for efficient air flow and ease of
movement. Standard horizontal sash, optional vertical sash, specify sash for each side.

Fume Chamber molded one-piece design with coved corners. Surface is white, glass smooth for ease of cleaning and excellent light reflectivity.

Air Flow Monitor with Repeater (Optional equipment) flush mounted air flow Monitor for Dual Entry Fume Hoods only. It features a back lit display which displays the air flow velocity or Air flow status. Cat. No. 51405

Plumbing Fixtures are color coded to specific service.

Fume Hood Fire Extinguisher (Optional equipment)

Epoxy or Phenolic Work Surfaces (Optional equipment)

Fume Hood Base Cabinet (Optional equipment)
Click for Dual Entry Electronic Plan-A-Hood
SASH OPTIONS
Horizontal Sash Verticle Sash Side Window
HORIZONTAL SASHES
The standard sash for HEMCO dual entry fume hoods. The maximum sash opening for the horizontal sash is 1/2 that of the vertical sashes. The smaller opening, means less air exhausted resulting in energy savings.
OPTIONAL VERTICAL SASHES
The optional sash for HEMCO dual entry fume hoods. The sash may be lifted to the completely open position for maximum access thru the fume chamber. Sash stops available.
OPTIONAL SIDE VIEW WINDOWS
Can be installed on either or both sides.

Side View Window 16" X 20" - Cat. No. 51620
Side View Window 20" X 24" - Cat. No. 52420

LE Dual Entry Fume Hoods

UNIFLOW LE DUAL ENTRY DESCRIPTIONS

Hood Depth B

Fume Hood Width "A"
1. LE Dual Entry Bypass CAV Hood:Superstructure to be modular composite chemical resistant FRP non-metal construction. Interior fume chamber to be glass-smooth with bell shaped exhaust collar. Picture frame sash opening in front with (4) horizontal moving sashes constructed of clear tempered safety glass with chemical resistant framing and track. Vapor proof light fixture and control switch are wired to a single point junction box. 115/60Hz, AC All electrical components are U.L. listed. 48" 60" 72" 96"

30'

35431

35531

35631

35831

36"

35441

35541

35641

35841

48"

35451

35551

35651

35851

2. Vertical Moving Sash Option: Add suffix to catalog number. Includes sash stops at 1/2 open position.

VS-4

VS-5

VS-6

VS-8

3. Epoxy Resin Work Surface:ideal for high concentrations of solvents,acids and alkalies. Excellent scratch and wear resistance. Dished to contain spillage. 11/4" thick, color: black.

30” deep worksurface

20435

20535

20635

20835

36” deep worksurface

20455

20555

20655

20855

48” deep worksurface

20445

20545

20645

20845

4. 30” Base Cabinet Assembly:consists of cabinet(s) & 8" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view A)

28" deep - cabinet access from one side only

50430

50530

50630

50830

5. 36” Base Cabinet Assembly: consists of (2) cabinets & 14" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view A)

34" deep - cabinet access from one side only

50436

50536

50636

50836

6. 48” Base Cabinet Assembly:consists of (4) cabinets and 2" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view B)

46" deep - cabinet access from both sides

50448

50548

50648

50848

Traditional Fume Hoods vs UniFlow Fume Hoods
Innovation is the Difference Between the Same Perspective and an Entirely New one.

  The 1925 Ford Tri-motor, featured all metal construction, no wood. Its fuselage and wings were constructed of corrugated sheet metal, for strength. These aircraft were well-designed, and reliable (for the era).   The Boeing 787 Dreamliner features aerodynamic composite construction. Composites have a higher strength to weight ratio, which helps to make the 787 a lighter more energy efficient aircraft.
Traditional Fume Hoods   1. Fully Assembled Fume Hoods   UniFlow Fume Hoods


Traditional Fume Hood 60” wide Constructed of formed painted sheet metal panels & held together with sheet metal fasteners & brackets. Chemical resistant interior liner panels with sharp corners sealed with caulking.
1 year warranty. Heavy challenging installation.
Weight 435 lbs

UniFlow SE Fume Hood 60” wide Unitized composite superstructure for total chemical resistance. non-metallic construction (NO RUST). Interior fume chamber one piece glass smooth, all coved corners for ease of cleaning. 5 year warranty. Unitized construction reduces weight for ease of installation.

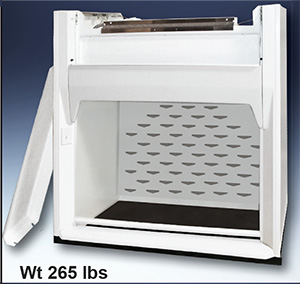

Weight 265 lbs
Weight savings difference = 170 lbs


    2. Disassembled Fume Hoods


Traditional Fume Hood 60” wide 170 bolts, nuts and screws removed. 14 painted sheet metal panels with fasteners & brackets removed. 8 flat composite liner panels, no caulk to seal cracks, includes sash assembly & 36” fluorescent 2 bulb T-8 light fixture with steel painted white reflector.
Weight 435 lbs

UniFlow SE Fume Hood 60” wide Unitized construction for superior durability and long life (NO RUST). Meets NFPA 45 for fire resistance in laboratories. Includes sash assembly & Vapor proof LED light fixture with polished Stainless steel reflector.

Weight 265 lbs
Weight savings difference = 170 lbs


    3. Fume Chamber Composite Panels


Traditional Fume Hood 60” wide 8 composite liner panels to fabricate fume chamber. No caulking or sealant in corner cracks. The ceiling panel shown with sheet metal vent outlet. Sash assembly and light assembly removed.
Weight 139 lbs

UniFlow SE Fume Hood 60” wide Unitized composite superstructure for total chemical resistance. non-metallic construction (NO RUST). Interior fume chamber one piece glass smooth, all coved corners no joints. 5 year warranty. Unitized construction reduces weight for ease of installation.
Sash assembly and light assembly removed.
Weight 210 lbs


Customer Comments:
Hoods, based on the nature of the products we analyze (sulfur chlorides, sulfuric acids, oleums), last about two to three years. At the end of three years, the chemicals have corroded both the exterior steel panels and the internal steel frame work of the metal hoods. We replaced them eight years ago with HEMCO UniFlow fiberglass fume hoods the installation was easier and we have had no repairs since then. We are building a new facility, and we plan to install HEMCO hoods. Steve Mixon, Chief Chemist

UniFlow Fume Hood Chemical Applications

One Piece Integral Fume Chamber. Exterior composite FRP Super Structure for total chemical & corrosion resistance. Meets NFPA-45 fire resistance requirements, For use of plastics in laboratories. Any heat generating equipment should be elevated at least 3 inches above worksurface, and at least 3 inches away from side walls and baffle.

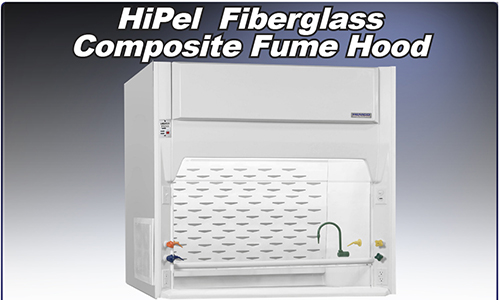

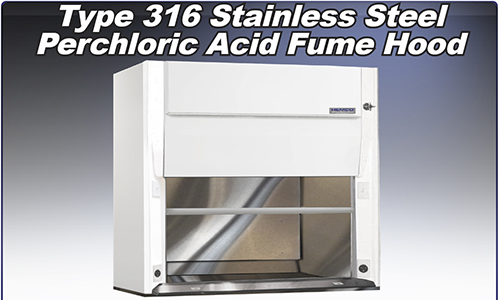

HEMCO FRP composite dual wall Superstructure unitized with integral FRP fume chamber. All fiberglass reinforced plastic side walls, rear wall, baffle system, air foil, exhaust collar, ceiling, with explosion proof light fixture. Available with Epoxy, Phenolic or Stainless steel worksurface. Make the AireStream the ideal fume hood.   HEMCO HiPel FRP composite dual wall Superstructure unitized with integral stainless steel fume chamber. All 316 stainless steel side walls, rear wall, baffle system, exhaust collar, ceiling, with explosion proof light fixture. Integral recessed 316 stainless steel worksurface, air foil, and wash down system make the ideal Perchloric Acid fume hood.

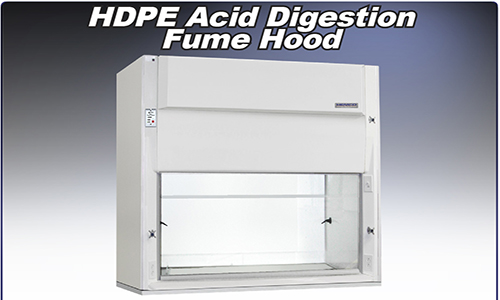

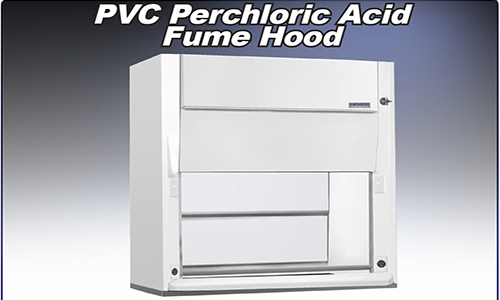

HEMCO HiPel FRP composite dual wall Superstructure unitized with integral PVC fume chamber. All PVC side walls, rear wall, baffle system, exhaust collar, ceiling, with explosion proof light fixture. Integral recessed PVC worksurface, air foil, and wash down system make the ideal Perchloric Acid fume hood.   HEMCO FRP composite dual wall Superstructure unitized with integral HDPE fume chamber. HEMCO HDPE High Density Polyethylene side walls, rear wall, baffle system, air foil, exhaust collar, integral ceiling, with explosion proof light fixture. Integral High Density Polyethylene worksurface and air foil, make the ideal Acid Digestion fume hood.

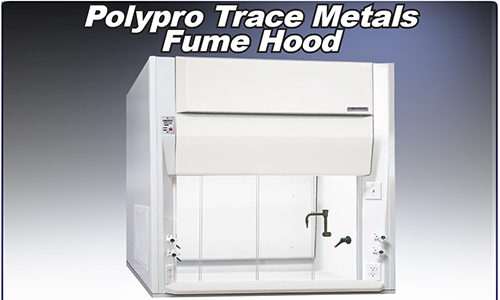

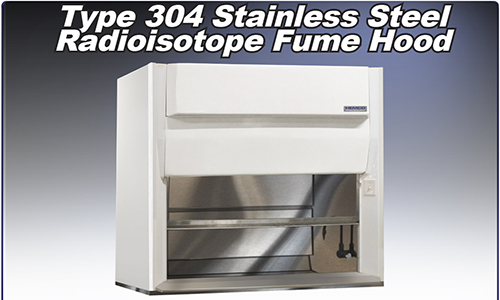

HEMCO HiPel FRP composite dual wall Superstructure unitized with integral PolyPropylene fume chamber. All PolyPropylene side walls, rear wall, baffle system, air foil, exhaust collar, ceiling, with explosion proof light fixture. Integral recessed PolyPropyplene worksurface air foil, make the ideal Trace Metals fume hood.   HEMCO HiPel FRP composite dual wall Superstructure unitized with integral 304 Stainless steel fume chamber. All stainless steel side walls, rear wall, baffle system, air foil, exhaust collar, ceiling, with explosion proof light fixture. Integral recessed 304 Stainless steel worksurface and air foil, make the ideal Radioisotope fume hood.

Chemical Resistance Chart

UniFlow Fume Hoods are constructed of white composite Fiberglass Reinforced Polyester (FRP) material. FRP is an excellent general purpose material for fume hood construction.

• Superstructure features unitized dual wall constuction with integral one piece fume chamber for total chemical resistance, non-sparking construction, for hazardous locations.

• UniFlow HiPel FRP Composite construction is UL 1805 Classified for Laboratory Fume hoods and cabinets.

• HEMCO HiPel FRP composite conform to NFPA 45 for products used in laboratories.

• To provide for the best airflow performance through the fume chamber, any heat generating equipment should be elevated 2" to 3" above work surface and 4" to 6" away from side walls and rear baffle system, and at least 6" away from the sash opening.

Chemical resistance of HEMCO’s most widely used FRP composite construction, and other liner material options.

N = No Effect ...........S = Slight Effect............... B = Bad Effect............... NA = Data Not Available

Worksurfaces
Chemical HEMCO HiPel
FRP Composite
Polyvinyl Chloride
(PVC)
High Density
Polyethylene (HDPE)
Polypropylene
(PP)
304 Stainless Steel
(SS)
316 Stainless Steel
(SS)
Epoxy
Resin
Phenolic Resin
Acetic Acid N N NA N S N N NA
Acetone N B N N N N N NA
Ammonium Hydroxide N N NA N N N N (28%) NA
Benzene N B S B N N N B
Carbon Tetrachloride N B B B N N N N
Chromic Acid N B NA B N N S (40%) B
Diethyl Ether N S NA B N N N NA
Ethyl Alcohol N B N N N N N NA
Gasoline N N B NA N N N N
Hydrogen Peroxide N N N N NA NA N B
Hydrochloric Acid N N N N B B NA NA
Kerosene N N NA B N N B N
Methyl Alcohol N S N N N N N NA
Methyl Ethyl Ketone N B B NA N N N N
Nitric Acid N (20%) N N B B B N NA
Sodium Chloride N N N NA S (10%) N (10%) S (10%) N
Sodium Hydroxide N N N N N N S (10%) B
Sodium Hypochlorite N N B N N N N NA
Sodium Sulfide S N N NA N N NA B
Sulfuric Acid N (33%) N (70%) N (80%) N S (80%) N (80%) N (60%) B (75%)
Sulfuric Acid (conc.) S S S N B S B B
Flame Spread < 25 NA NA NA 0 0 NA NA
Fuel Contributed 0 NA NA NA 0 0 NA NA
Smoke Developed 500 NA NA NA 0 0 NA NA
Industries We Serve

• Life Sciences • Academic • Pharmaceutical • Chemical • Aerospace• Government • Research & Development • Cannabis • Forensics • •Manufacturing • Engineering • Robotics • Safety • Petroleum • Coatings • Industrial • Automotive • Laboratory • HVAC • Quality Control •Electronics • Food Processing • Facility Maintenance • Spectroscopy • Health Care • Medical • Public Works • Water Treatment • Genetics •Correctional Institutions • Architects • Microscopy • Clinical • Packaging • Additive Manufacturing • Lasers • Loss Prevention •
• Metal Fabricating • Filtration • Construction • Education • Energy • Environmental • Green Building • Photonics • Composites • Drug Development • •Heavy Equipment • Mining • Nuclear • Pathology •

Click for Sales, Service, & Request for Quote Click for Dual Entry Electronic Plan-A-Hood
Click for Fume Hood Accessories Click for Fume Hood Base Cabinets BTT
