SE Laboratory Fume Hoods |
|

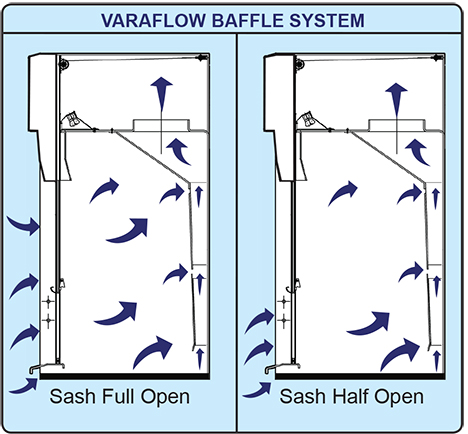

| Designed for high efficiency, energy savings & maximum user protection. Available in 48”, 60” 72” and 96” width; 32” depth X 59” height. The aerodynamic face opening with airfoil provides uniform air flow into the fume chamber. A constant volume low flow hood with VaraFlow baffle system efficiently directs the air flow through the fume chamber to the exhaust outlet with minimum turbulence. |
|
 |
| UniFlow Superstructure non-metallic construction for total chemical resistance, superior durability & long life. Integral one piece composite liner, glass smooth, all coved corners for ease of cleaning. Unitized construction reduces weight for ease of installation. 5 year warranty. Meets U.L.1805, & NFPA-45 classification with flame spread of less than 25 per ASTM E-84. |
| |
| High Efficiency sash management provides for energy savings. With sash stops at 1/2 open air flow is reduced by 50%. |
| |
| User Protection with sash in lowered position, fumes are kept safely away from the user. |
| |
| 29” Sash Height vertical moving sash for loading and unloading of fume hood. |
| |
| Sash Stop located at 1/2 open position to reduce air flow 50%, for energy savings Optional equipment Cat. No. 51651 |
| |
| Full 36” Viewing Height for ease of access and unobstructed view of fume chamber and working with tall apparatus & distillation grids. |
| |
| Angled Picture Frame Sash Opening aerodynamic face opening with air foil provides uniform air flow into the fume chamber, & thru the VaraFlow baffle system, to the exhaust collar. |
| |
| Energy Efficient fluorescent vapor proof light fixture with polished stainless steel reflectors, and light switch on left column, all factory installed. |
| |
Air Flow Monitor continuously monitors face velocity air flow, comes standard with analog, digital available. Meets ANSI and
OSHA requirements. Optional equipment, Cat. No. 51403 |
 |

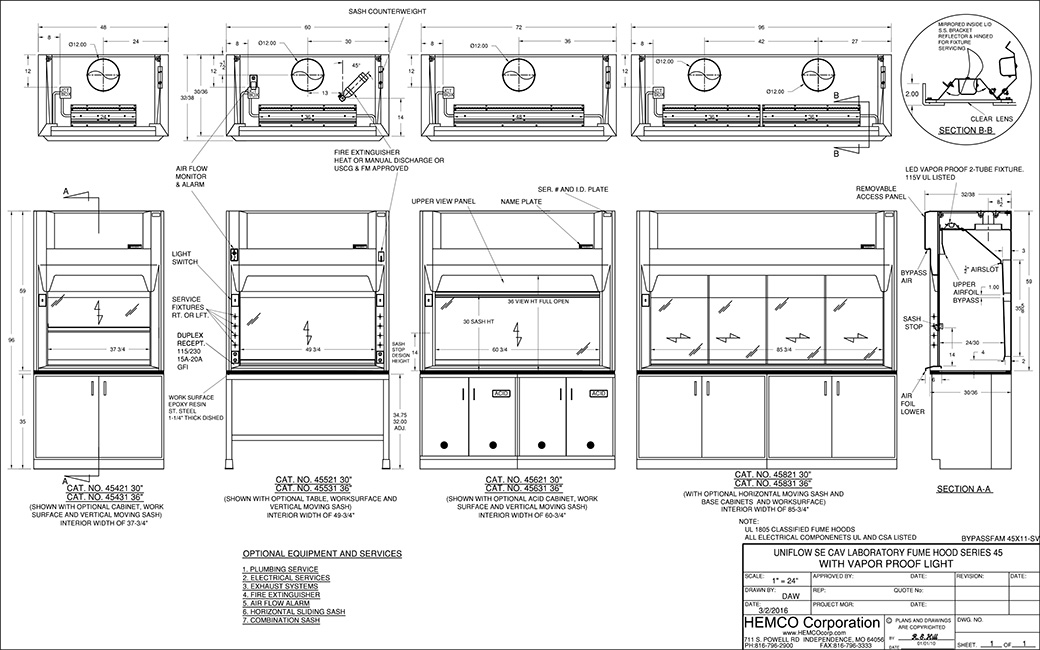

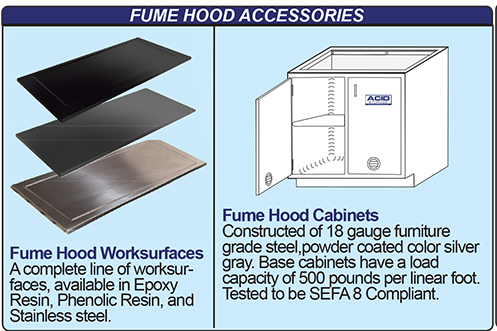

UniFlow SE Hood Cat. No. 45511 shown with optional epoxy resin worksurface,base cabinets & fixtures |
|
|
|

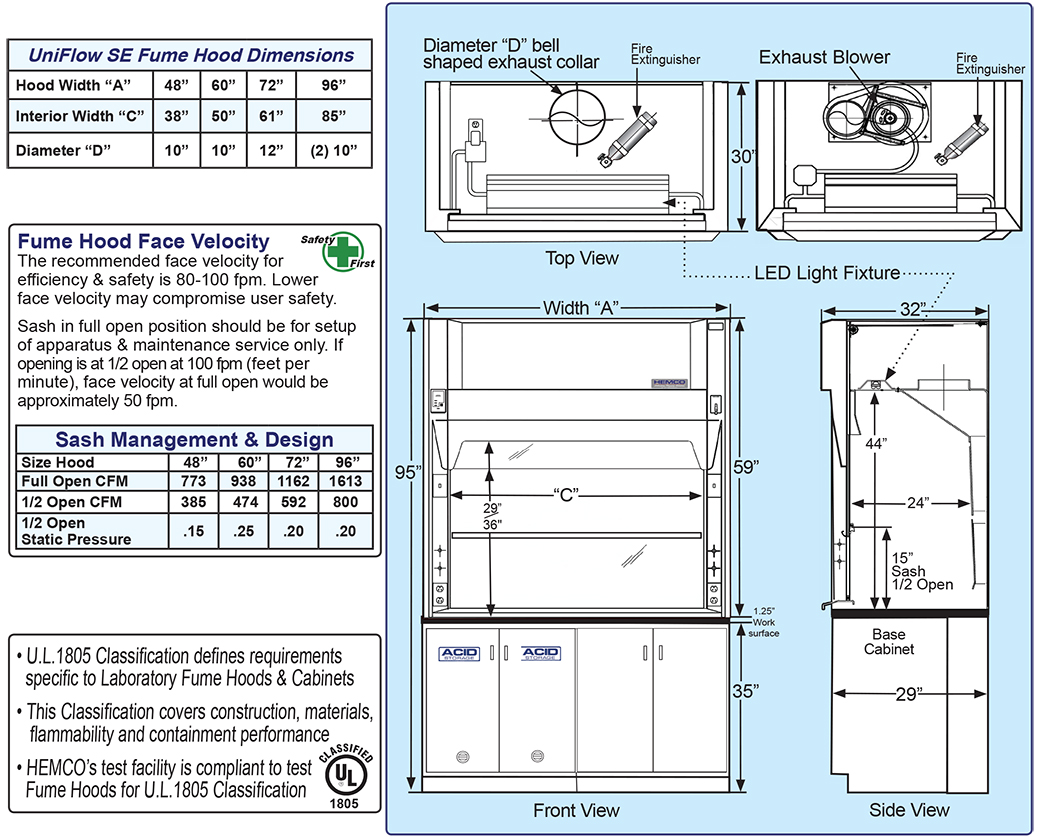

| UniFlow SE Fume Hood Specifications |
|
 |
UniFlow SE Specifications & Ordering Info |
48" |
60" |
72" |
96" |
| 1. UniFlow By Pass Fume Hood with Vapor Proof Light Superstructure to be unitized corrosion and fire resistant, non-metallic composite fiberglass construction, one piece fume chamber liner to have white glass smooth molded-in finish and all coved corners. Varaflow baffle system and bell shaped exhaust collar. Picture frame sash opening with vertical raising counter balanced clear tempered safety glass sash with chemical resistant PVC framing, track and aerodynamic sash lift. Vapor proof fluorescent light fixture and control switch are wired to a single point junction box. 115V/60Hz, AC All electrical components are U.L. listed. Optional electrical services. Fume hood is U.L.1805 classified. Specify CAV or VAV. |
45411 |
45511 |
45611 |
45811 |
| 2. UniFlow By Pass Fume Hood with Vapor Proof Light & Built in Exhaust Blower Same as #1 above except equipped with built-in corrosion resistant, vertical discharge, direct drive exhaust motor/blower, 115 volt, 60Hz, AC with control switches rewired to single point junctionbox. All electrical components UL compliant. Maximum duct run of 20’. |
45412 |
45512 |
45612 |
-- |
| 3. UniFlow By Pass Fume Hood with Explosion Proof Light
:Same as #1 above except equipped with explosion-proof light fixture, Class I Div II Group A B C D Class II Div II Group F& G, 115 volt, 60Hz AC, UL Listed. Installed but not wired, must be wired to comply with local codes. Specify CAV or VAV. |
45413 |
45513 |
45613 |
45813 |
| 4. UniFlow By Pass Fume Hood with Explosion Proof Light & Built in Exhaust Blower:Same as #3 above except equipped with built-in corrosion resistant, non sparking, explosion-proof motor/blower exhaust system, Class I,Group C & D, Class II, Group E F & G, 115, volt 60Hz, AC. Explosion-proof exhaust blower and light are installed but not wired, must be wired to comply with local codes. Maximum duct run of 20’. Available in CAV. |
45414 |
45514 |
45614 |
-- |
|
|
|
 |
|
|
