| Enclosures and Fume Hoods for Education |
|
|
 |

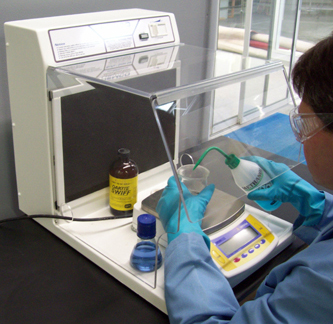

MicroFlow II Workstation
Designed as a Class I enclosure for clinical, student, forensic, tissue staining.
• Completely self contained with integral recessed work surface to contain spills.
• Clear shroud with safety viewing sash allows visibility from 3 sides, & provides
both safe observation & access to inside work area.
• Operates on 115V AC, or 230V International, Conforms to UL, CSA, & CE
requirements.
• Equipped with a built-in fan, carbon filter, pre-filter, switches and filter change light. |
|
|
SSE Enclosure Versatile vented enclosure is ideal for student workstations, weighing operations,
and light duty fume hood procedures.
• Energy efficient SSE requires less air from the lab than traditional fume hoods.
• Constructed with chemical resistant metal framing with 1/4” thick clear acrylic
side panels, ceiling, and viewing sash allowing clear sight lines through to lab.
• The viewing sash is angled 15 degrees for ease of viewing comfort with 8”
reach in opening height. Sash swings up to provide 24” access opening.
• Available as a single unit or back to back assembly in 30”, 36” and 48” widths
with 30” height of exhaust air is greatly reduced. |
|
|
|
|

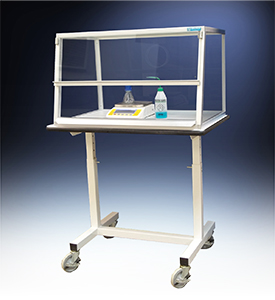

VSE Balance Enclosure Versatile vented balance enclosure is ideal for critical weighing procedures,
pathology, cytology, and histology applications.
• VSE is offered in 24”, 36” and 48” widths to accommodate analytical balances,
instrumentation and work processes.
• Efficient air flow design with air foil and by-pass, directs fumes and airborne
particulate to baffled exhaust ensuring containment and user protection.
• Constructed of chemical resistant metal framing with 1/4” thick clear tempered
safety glass side panels and clear acrylic viewing sash.
• Viewing sash is angled 15 degrees for ease of viewing comfort with 8” reach
in opening height. sash swings up to provide 20” of access opening. |
|
|
UniFlow LE Dual Entry Designed to locate between a school prep room and classroom, classroom to classroom,
or on an island location. The instructor can perform a demonstration and students can
safety observe from opposite side.
• Equipped with vapor proof light and features a unitized dual wall composite
resin construction for superior chemical resistance and durability.
• Surface finish is molded in, Not a paint finish.
• Convenient horizontal sliding tempered glass panels on front and rear
allow user access and procedure setup
• Optional base cabinet, worksurface, sinks, electrical accessories and
service fixtures to meet specific user needs. |
|
|
|
|

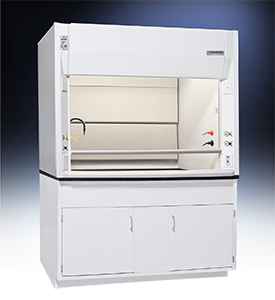

UniFlow LE Fume Hoods
Cost Effective, energy efficient solution for budget sensitive projects.
• Constructed entirely of chemical resistant, flame retardant non-metallic
composite resin.
• Features a unitized dual wall construction, eliminating all assembly screws,
rivets, brackets, bolts & nuts. • Offered in 36”, 48”, 60”, 72” & 96” widths. Vapor proof
T-5 fluorescent or explosion proof light.
• The aerodynamic face opening with air foil provides uniform air flow into
the fume chamber, and thru the VaraFlow baffle system, to a bell-shaped
exhaust collar.
• U.L. 1805 Classified for fume hoods and cabinets. |
|
|

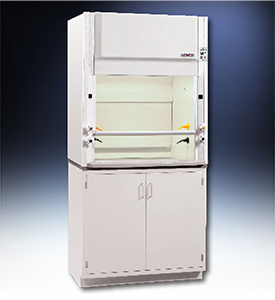

UniFlow CE Fume Hoods UniFlow CE Hoods are built with all of the features of a full size traditional hood,
except in a energy saving compact sizes.
•Available in of 30”, 36”, 48” & 72” widths, with either vapor proof or explosion
proof light and optional built-in exhaust blower.
• UniFlow Superstructure features exclusive unitized dual wall construction for
superior chemical resistance,strength,and durability. Meets NFPA-45 classification
with flame spread of less than 25 per ASTM E-84.
• The aerodynamic face opening with air foil provides uniform air flow into
the fume chamber, and thru the VaraFlow baffle system, to a bell-shaped
exhaust collar. U.L. 1805 Classified for fume hoods and cabinets. |
|
|
|
|
