Fume Hood Wall Mounted Plumbing / Electrical Fixtures |
Fume hood remote control service fixtures feature epoxy coated brass, chemical resistant, color-coded, serrated hose connections,
and 3/8” NPT brass valves with rod and handle assembly. Plumbing fixtures are factory installed on hood, they can be pre-plumbed
if specified. Please specify service required, fixture location, and inside or outside service access panels. Conforms to ANSI Z21.15. |
![header](images/fhsf images/header1.jpg) |
![Service Set of Two Service Set of Two](images/fhsf images/Plumbing1.jpg) |
![Service Set of Four Service Set of Four](images/fhsf images/Plumbing2.jpg) |
![Service Set of Six Service Set of Six](images/fhsf images/Plumbing3.jpg) |

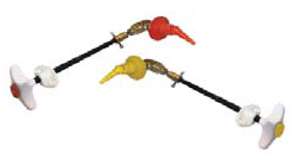

Service Set of Two (specify left or right mounting)
Two remote controlled service fixture set. Color-coded index buttons with matching color-coded serrated tip. Specify service required. Epoxy coated brass. Cat. No. 50121-FS |
Service Set of Four
(specify left or right mounting)
Four remote controlled service fixture set. Color-coded index buttons with matching color-coded serrated tip. Specify service required. Epoxy coated brass.
Cat. No. 50141-FS |
Service Set of Six
(specify left or right mounting)
Six remote controlled service fixture set. Color-coded index buttons with matching color-coded serrated tip. Specify service required. Epoxy coated brass.
Cat. No. 50161-FS |
![DI Faucet DI Faucet](images/fhsf images/Plumbing4.jpg) |
![DI Faucet DI Faucet](images/fhsf images/Plumbing5.jpg) |
![Gooseneck PVC Gooseneck PVC
Service Fixture](images/fhsf images/Plumbing6.jpg) |
![Service Fixture Service Fixture](images/fhsf images/Plumbing7.jpg) |
DI Faucet
Pure water 6” rigid PVC goose neck.
Cat. No. 50019 |
DI Faucet
Pure water 6” swivel tin-lined gooseneck. Epoxy coated brass.
Cat. No. 50022 |
Gooseneck PVC Service Fixture
Wall mount, no valve,
constructed of PVC
Cat. No. 51110 |
Service Fixture
Cold water, remote controlled
epoxy coated brass turret.
Cat. No. 50012 |
![Water Faucet with Vacuum Breaker Faucet with Vacuum Breaker](images/fhsf images/Plumbing8.jpg) |
![Water Faucet with Vacuum Breaker Water Faucet with Vacuum Breaker](images/fhsf images/Plumbing9.jpg) |
![Water Faucet Water Faucet](images/fhsf images/Plumbing10.jpg) |
![Service Fixture Service Fixture](images/fhsf images/Plumbing20.jpg) |
Water Faucet with Vacuum Breaker
Cold water 6” swivel gooseneck. Epoxy
coated brass.
Cat. No. 50023 |
Water Faucet with Vacuum Breaker Cold water remote controlled 6”
swivel gooseneck. Turret & goose
neck are epoxy coated brass.
Cat. No. 50113-CW |
Water Faucet
Cold water remote controlled 6”
swivel gooseneck. Turret and gooseneck are epoxy coated brass.
Cat. No. 50112-CW |
Service Fixture
Remote controlled single service outlet. color-coded index buttons
with matching color coded
serrated tip outlets.
Cat. No. 50013 |
![Base Fixture Bass Fixture](images/fhsf images/Plumbing12.jpg) |
![Lab Turret Lab Turret](images/fhsf images/Plumbing13.jpg) |
![Mix Faucet Mix Faucet](images/fhsf images/Plumbing14.jpg) |
![Mix Faucet Mix Faucet](images/fhsf images/Plumbing15.jpg) |
Base Fixture
Deck or wall mount, 3/8 NPT remote, no
valve. PVC
Cat. No. 51013 |
Lab Turret
Deck or wall mount,
3/8 NPT, no valve, PVC
Cat. No. 51012 |
Mix Faucet
Hot and cold remote controlled 6” swivel gooseneck. Turret and gooseneck are epoxy coated brass.
Cat. No. 50102 |
Mix Faucet
Hot and cold water remote controlled turret. Turret is of epoxy coated brass.
Cat. No. 50101 |
![High Flow water valve High Flow water valve](images/fhsf images/Plumbing16.jpg) |
![Single Keycock Single Keycock](images/fhsf images/Plumbing17.jpg) |
![Aspirator Aspirator](images/fhsf images/Plumbing18.jpg) |
![External Mounted Vacuum Breaker External Mounted Vacuum breaker](images/fhsf images/Plumbing19.jpg) |
High Flow Water Valve, Straight Pattern
Ball valve construction with quarter turn open / close, used for supply and return connections
Cat No. 51023 |
Single Keycock
Single flange mounted needle valve, keycock with integral flange and shank connection. Epoxy coated brass. 3/8” NPT with lock nut
Single Cat. No. 50025
Double Cat. No. 50125 |
Aspirator
3/8” NPS male inlet
Epoxy coated brass
Cat. No. 50058 |
External Mounted Vacuum Breaker
Breaker with 3/8” NPT inlet and outlet. Chrome plated brass.
Cat. No. 50044 |
Fume Hood Electrical Services |
|
Electrical services are UL, CSA & CE listed. They come factory installed, wired to a single point junction box when ordered with fume hoods. Services must be wired to comply with local codes. |
|
Fume Hood Electrical Services |
|
|
![](images/fhes Images/Duplex Receptical.jpg) |
![](images/fhes Images/Single Receptacle.jpg) |
![](images/fhes Images/GFI Receptical.jpg) |
![](images/fhes Images/DataPort.jpg) |
Duplex Receptacle
115V single phase receptacle. Installed on front column of fume hood. Includes junction box and cover plate. UL listed.
amps |
Cat. No. |
15 amps |
50029-1 |
20 amps |
50029-2 |
|
Single Receptacle
230V single phase receptacle. Installed on front column of fume hood. Includes junction box and cover plate. UL listed.
amps |
Cat. No. |
15 amps |
50030-1 |
20 amps |
50030-2 |
|
GFI Duplex
115V consists of combination ground fault interrupters, 3-wire polarized grounded. Includes junction box & cover plate. UL listed.
amps |
Cat. No. |
15 amps |
50048-1 |
20 amps |
50048-2 |
|
Data Port
Cat 6, 10 gigabit Ethernet, (2) port fixture. Installed on front column. Cabling not included.
Cat No. 50053
|
![](images/fhes Images/Light Switch.jpg) |
![](images/fhes Images/Blower Switch.jpg) |
![](images/fhes Images/Light Switch.jpg) |
![Service Port Service Port
Pass-Through](images/fhes Images/Electrical35.jpg) |
Light Switch
(standard)
115V/15 amps. Includes junction
box and cover plate. UL listed.
Cat. No. 50028-1 |
Blower Switch with Pilot Light
Includes junction box and cover plate. UL listed.
volts/amps |
Cat. No. |
115 V 15 amps |
50027-1 |
230 V 20 amps |
50027-3 |
|
Blower Switch
Mounted in a single gang receptacle box with face plate. Factory mounted not wired. Includes thermal overload protection. Double pole switch for up to 1 HP, single phase, 60 Hz 115V 50 Hz, 230V AC motors. UL listed.
Cat. No. 50050 |
Service Port
Pass-Through
Convenient port allows cords, tubes, or cables to pass to and from the hood.
Cat. No. 50100 |
Fume Hood Vapor Proof Light Fixtures |
|
![Vapor-Proof Light Vapor-Proof Light](images/fhes Images/Electrical22.jpg) |
Vapor-Proof Light
Factory installed.
Accepts bulb up to 150w, 115V, UL listed,
(bulb not included)
Standard on CE, Canopy, Universal and EcoFlow hoods.
Cat. No. 50035 |
Vapor Proof LED Light Fixture |
Fluorescent Lighting |
![Vapor Proof LED Light Fixture Vapor Proof LED Light Fixture](images/fhes Images/Electrical23.jpg) |
![Fluorescent Lighting Fluorescent Lighting](images/fhes Images/Electrical23.jpg) |
LED fixture with Stainless steel reflector, (2) tube, 115V, UL listed. (LEDs included) LED has a 50,000 hour average life span. Standard on SE and LE Fume hoods.
24 inch......................................... Cat. No. 51124
36 inch..........................................Cat. No. 51136
48 inch......................................... Cat. No. 51148
|
T-5 fixture with Stainless steel reflector, (2) tube, 115V/230V tubes changed from the outside. (fluorescent tubes are included) UL listed. Optional on SE and LE Fume Hoods.
24 inch..................................... Cat. No. 50224
36 inch......................................Cat. No. 50236
48 inch..................................... Cat. No. 50248 |
|
Fume Hood Explosion Proof Light Fixtures and Services |
|
![Explosion-Proof Light Std Class I Div II Explosion-Proof Light Std Class I Div IIt](images/fhes Images/Electrical10.jpg) |

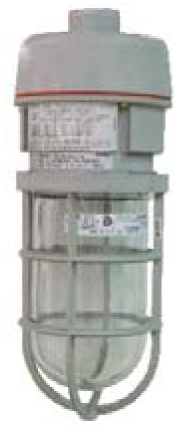

Explosion-Proof Light Std Class I Div II
For use in hazardous locations. Gray, two-coat epoxy finish with easily removed prismatic globe. Factory mounted, not wired. Accepts compact fluorescent or LED, (bulb not included) 115V /230V UL listed. Class I Div II Group A, B,C,D Class II Div II Group F& G
Cat. No. 50034 |
![Explosion-Proof Fixture Class I Div I Explosion-Proof Fixture Class I Div I](images/sf images/ExplosionProofLight.jpg) |
Explosion-Proof Fixture Class I Div I
For use in hazardous locations.
Gray, two coat epoxy finish with easily removed prismatic globe. Accepts compact fluorescent or LED, (bulb not included)
115V/230V. Factory mounted, not wired. UL listed. Class I
Div I Group C, D, Class II Div I
Group E, F & G
Cat. No. 50038 |
![Explosion-Proof Fluorescent Lighting Explosion-Proof Fluorescent Lighting
Class I Div I](images/fhes Images/Electrical24.jpg) |
Explosion-Proof Fluorescent Lighting
Class I Div I
fixture is (2) tube, 115V/230V with tubes
changed from the outside. UL listed.
(fluorescent tubes are included)
24 inch........................ Cat. No. 50077
48 inch........................ Cat. No. 50078 |
|
![Explosion-Proof Switch Explosion-Proof Switch
Class I Div I or II](images/fhes Images/Electrical9a.jpg) |
Explosion-Proof Switch
Class I Div I or II
For use in hazardous locations. Surface mount type with cast aluminum housing. Specify 115V/20 amp or 230V/20 amp.
UL listed.
Cat. No. 50036 |
![Explosion-Proof Plug Explosion-Proof Plug
Class I Div I or II](images/fhes Images/Electrical15a.jpg) |
Explosion-Proof Plug
Class I Div I or II Adaptable for use with all receptacles. 3-pole, 2-wire, Specify 115V/20 amp or 230V/20 amp AC. Not installed at factory.
UL listed.
Cat. No. 50039 |
![Explosion-Proof Explosion-Proof
Receptacle
Class I Div I or II](images/fhes Images/Electrical13a.jpg) |
Explosion-Proof
Receptacle
Class I Div I or II
For use in hazardous locations. Surface mount type with aluminum housing, 3-pole, 2-wire,
Specify 115V/20 amp or 230V/20 amp. Not installed at factory.
UL listed.
Cat. No. 50037 |
![Explosion-Proof Ground Explosion-Proof Ground
Fault Interrupter
Class I Div I or II](images/fhes Images/Electrical14.jpg) |
Explosion-Proof Ground
Fault Interrupter
Class I Div I or II
For use in hazardous locations. Factory sealed GFI is designed to interrupt a circuit when a ground fault us detected. 115V 60 Hz, 20 amp. Not installed at factory. UL listed.
Cat. No. 50104 |
|
Fume Hood International Electrical Services |
![European Socket European Socket](images/fhes Images/Electrical16.jpg) |
Continental European Socket with cover cap Type : CEE7
color: gray
Rating 250V/16 amp, with box and cover,
installed at factory
Cat. No. 50004 |
![South Africa Socket South Africa Socket](images/fhes Images/Electrical17.jpg) |
Indian / South Africa
Socket ISA
Type : BS546
color: white
Rating 250V/15 amp, with box
and cover,
installed at factory.
Cat. No. 50006 |
![UK Ireland Socket UK Ireland Socket](images/fhes Images/Electrical18.jpg) |
United Kingdom / Ireland
Shuttered Socket
Type : BS1363
color: white
Rating 250V/13 amp, with box and cover, installed at factory.
Cat. No. 50007 |
![Panel Mount Socket Panel Mount Socket](images/fhes Images/Electrical19.jpg) |
Continental European Panel Mount Socket
Type : CEE7
color: white
Rating 250V/15 amp,
with box and cover,
installed at factory.
Cat. No. 50008 |
|
|
|
|
|
|
