SE FM Floor Mount (Walk-In)Fume Hoods |
|
| UniFlow SE , & LE Floor Mounted (Walk-In) hoods, in sizes 48", 60", 72", 96", 120" & 144" & depths of 30", 36", & 48". Hoods are available in custom sizes to meet various applications & are ideally suited for synthesis, & other rack type operations where tall apparatus is used or equipment is rolled into the work area. Modular construction can be shipped disassembled for on-site assembly. |
|
 |
| |
UniFlow Superstructure non-metallic construction, total chemical and corrosion resistance, superior durability and long life. Interior fume chamber one-piece glass smooth, all coved corners for ease of cleaning. Unitized construction reduces weight for ease of installation. 5 year warranty. Meets U.L.1805, & NFPA-45 classification with flame spread of less than 25 per ASTM E-84. |
| |
UniFlow AireStream Vector Baffle System Features Vector Air Flow Slots for low flow and high performance. Maintains uniform air flow thru the baffle system to bell shaped exhaust collar outlet. |
| |
Vapor Proof LED light fixture polished stainless steel reflectors, and light switch on left column, all factory installed. Energy efficient 15W, 50/60Hz, 100-277VAC. 5 Year warranty. U.L. Listed |
| |
High Efficiency sash management provides for energy savings. |
| |
|
| |
User Protection with sash in lowered position, fumes are kept safely away from the user. |
| |
|
| |
62” Sash Height for viewing of fume chamber, loading and unloading equipment for set up. Includes upper and lower sash. 82” Stand Up Height for ease of access and interior depths of 24”, 30”, and 42” available. |
| |
|
| |
70” Viewing Height Double Vertical Sash provides ease of access for apparatus set-up in fume chamber. Sashes are perfectly counter balanced, 3/16 tempered safety glass, coated stainless steel cable with stainless steel pulley assembly. Framed in nonmetallic PVC framing, track, and aerodynamic sash lifts for ease of movement & air flow efficiency. |
| |
|
| |
Angled Picture Frame Opening aerodynamic face opening with air foil provides uniform air flow into the fume chamber, & thru the Vector AireStream Baffle System, to the exhaust collar. |
| |
|
| |
Energy Efficient vapor proof LED light fixture with polished stainless steel reflectors, and light switch on left column, all factory installed. |
| |
|
| |
Plumbing Services fixtures are color coded to specific service. |
| |
|
| |
Electrical Services can be mounted on right or left side. |
| |
|
| |
Air Flow Monitor (Optional equipment) continuously monitors face velocity air flow, meets ANSI and OSHA requirements. Cat. No. 51403 |
| |
Click for Maintenance Manual |
|
| UniFlow SE FM Hood Cat. No. 11060 shown with vertical rising sash and optional worksurface. |
 |
| STANDARD VERTICAL SASHES for HEMCO fume hoods,4',5',& 6' wide. The sash may be lifted to the completely open position for maximum access thru the fume chamber. Sash stops available. |
|
HORIZONTAL SLIDING SASHES For HEMCO fume hoods, 8' 10', & 12' wide. The maximum sash opening for the horizontal sash is 1/2 that of the vertical sashes. The smaller opening, means less air exhausted resulting in energy savings. |
|
|
|
SE FM Floor Mount (Walk-In) Fume Hoods |
|
|
 |

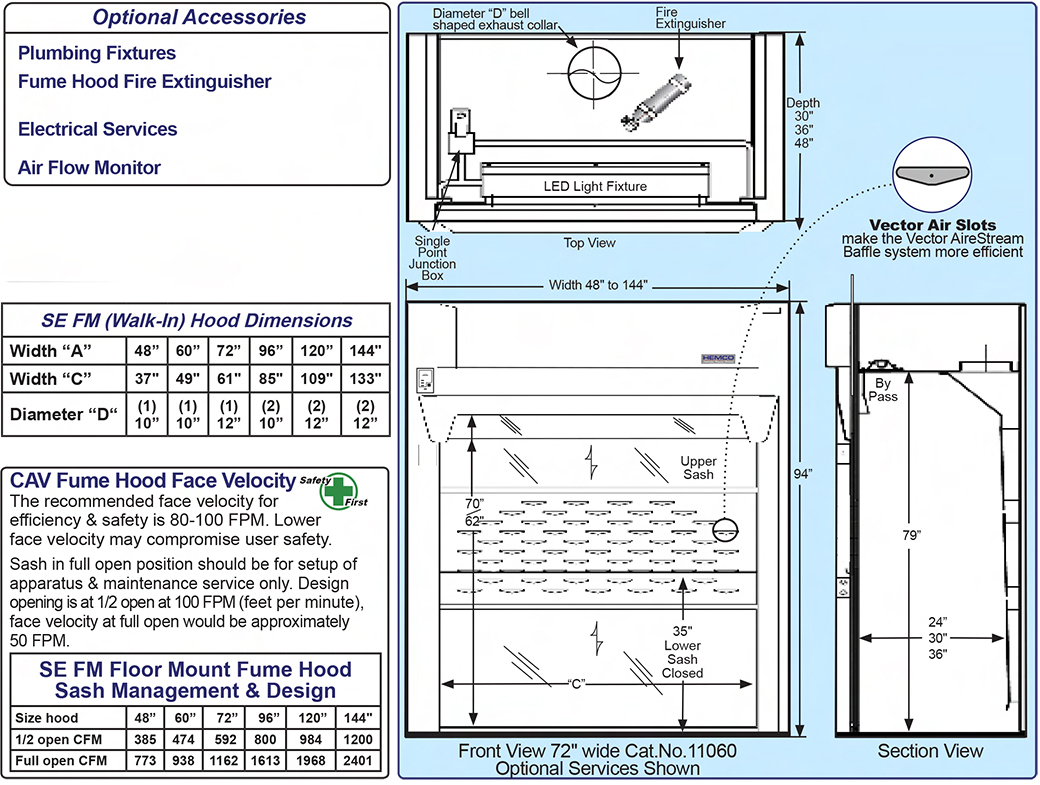

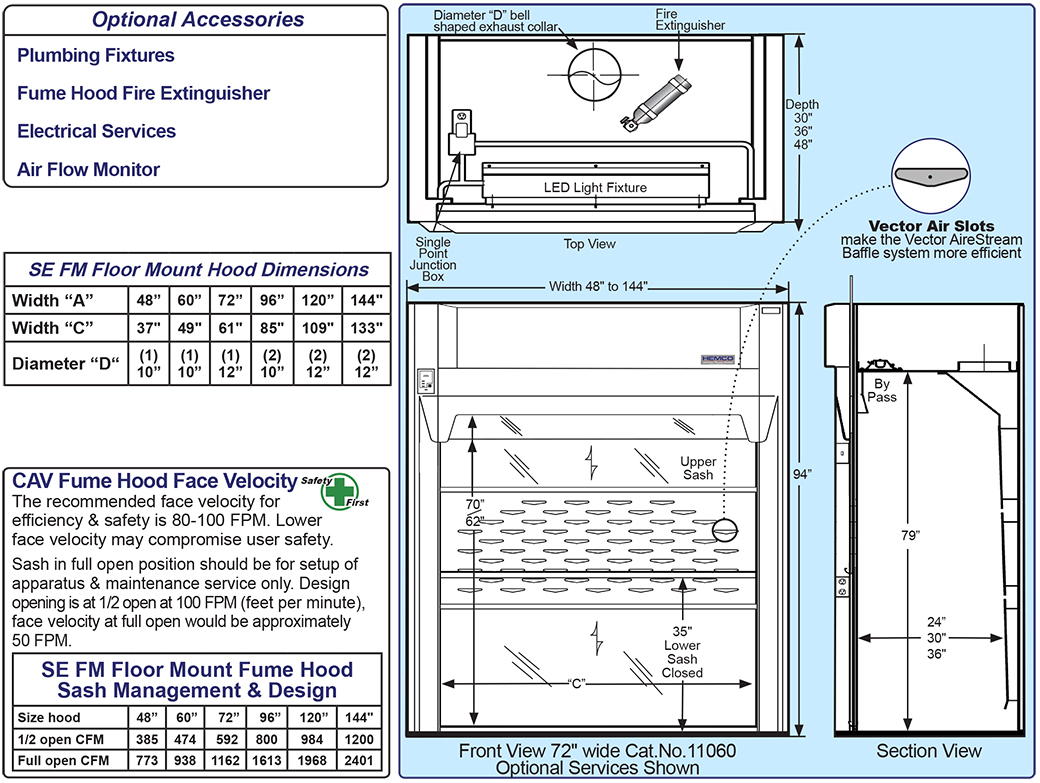

| UniFlow SE FM Specifications |
...Hood (B)Depth |
.Fume Hood Width "A" |
| 48" |
60" |
72" |
96" |
120" |
144" |
1. UniFlow SE FM Floor Mounted CAV Bypass Fume Hood
with Vapor-Proof Light: Superstructure to be modular composite chemical resistant FRP non-metal construction. Interior fume chamber to be glass-smooth with Vector Aire Stream Baffle System & bell shaped exhaust collar. Picture frame upper & lower sash opening with counter balanced sashes of clear tempered safety glass with chemical resistant PVC framing, track, and aerodynamic sash lift. Vapor proof LED light fixture & control switch are wired to a single point junction box, 115/60Hz, AC. All electrical components are U.L.listed. Horizontal sliding doors optional on 96” & 120” hoods, consult factory. |
30" |
11048 |
11050 |
11060 |
11080 |
11100 |
11120 |
| 36" |
11042 |
11052 |
11062 |
11082 |
11102 |
11122 |
| 48" |
11043 |
11053 |
11063 |
11083 |
11103 |
11125 |
| 2. UniFlow SE Fume Hood with VAV:Same as #1 above except equipped with Variable Air Volume VAV restricted bypass feature in place of CAV bypass feature. Ducting must be connected to optional VAV exhaust system controls. |
30" |
|
|
|
|
|
|
| 36" |
11046 |
11056 |
11066 |
11086 |
|
|
| 48" |
11047 |
11057 |
11067 |
11087 |
|
|
| 3. UniFlow SE Fume Hood with Explosion-Proof Light: Same as # 1 above except equipped with explosion proof vapor tight light fixture. Class I Div II Group A B C & D, Class II Div II Group F & G, 115/230V, 50/60Hz U.L. listed Fixture is installed but must be field wired to local codes. |
30" |
11041 |
11051 |
11061 |
11081 |
11101 |
11121 |
| 36" |
11044 |
11054 |
11064 |
11084 |
11047 |
11047 |
| 48" |
11045 |
11055 |
11065 |
11085 |
11105 |
11127 |
4. UniFlow SE Fume Hood International Configuration: Same as #1 above except equipped to comply to international electrical configuration. 220V/50Hz AC. Optional international electrical configuration, electrical switches, receptacles and exhaust blowers available.
|
30" |
|
|
|
|
|
|
| 36" |
11143 |
11153 |
11163 |
11183 |
11123 |
|
| 48" |
11144 |
11154 |
11164 |
11184 |
|
|
5. Horizontal Sliding Doors (4 panels on 2 tracks) - for 96”, 120” & 144” hoods only
|
|
|
|
|
|
SE FM Floor Mount (Walk-In) Fume Hoods |
|
 |
|
LE FM Floor Mount (Walk-In) Fume Hoods |
|
| UniFlow LE FM Floor Mounted (Walk-In) hoods are ideally suited for synthesis, distillation & other rack type operations where tall apparatus is used or equipment is rolled into the work area. In widths 48”, 60”, 72”, 96”, 120” & 144” and depths of 30”, 36”, & 48”. UniFlow Walk-In hoods are available in standard or special sizes to meet various applications. Modular construction can be shipped disassembled for on-site assembly. |
|
 |
UniFlow Superstructure non-metallic construction, total chemical and corrosion resistance, superior durability and long life. Interior fume chamber to be glass-smooth with Vector Baffle System & bell shaped exhaust collar. Modular construction reduces weight for
ease of installation. Includes 5 year warranty. |
| UniFlow AireStream Vector Baffle System Features Vector Air Flow Slots for low flow and high performance. Maintains uniform air flow thru the baffle system to bell shaped exhaust collar outlet. |
| Vapor Proof LED light fixture polished stainless steel reflectors, and light switch on left column, all factory installed. Energy efficient 15W, 50/60Hz, 100-277VAC. 5 Year warranty. U.L. Listed |
| High Efficiency sash management provides for energy savings. |
| User Protection with sash in lowered position, fumes are kept safely away from the user. |
| 62” Sash Height for viewing of fume chamber, loading and unloading equipment for set up. Includes upper and lower sash. 76” Stand Up Height for ease of access and interior depths of 30”, 36”, and 48” available. With sash in lowered position, fumes are kept safely away from the user. |
68” Viewing Height Double Vertical Sash provides ease of access for apparatus set-up in fume chamber. Sashes are perfectly counter balanced, 3/16 tempered safety glass, coated stainless
steel cable with stainless steel pulley assembly. Framed in
non-metallic PVC framing, track, and aerodynamic sash lifts for
ease of movement and air flow efficiency. Horizontal sliding
doors are available on 96", 120" and 144" wide models. |
Angled Picture Frame Opening aerodynamic face opening
with air foil provides uniform air flow into the fume chamber, & thru
the Vector AireStream Baffle System, to the exhaust collar. |
Energy Efficient vapor proof LED light fixture with polished stainless steel reflectors, and light switch on left column, all
factory installed. |
| Plumbing Services fixtures are color coded to specific service. (Optional equipment) |
Electrical Services can be mounted on right or left side.
(Optional equipment) |
Air Flow Monitor (Optional equipment) continuously monitors
face velocity air flow, meets ANSI and OSHA requirements. .
Cat. No. 51403 |
| Click for Maintenance Manual |
|
|

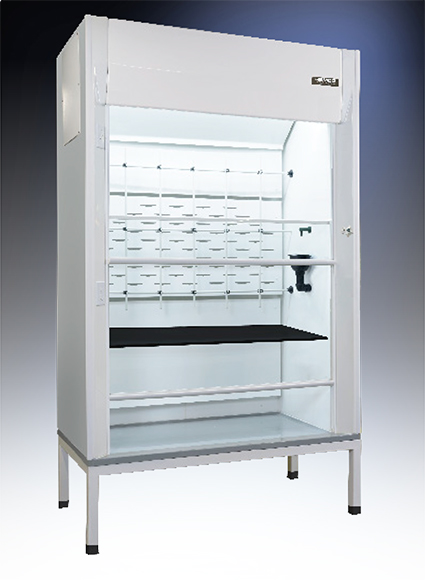

| UniFlow LE FM Hood Cat. No. 12053, shown with optional distillation table, adaptable worksurface, & fixtures |
|
| STANDARD VERTICAL SASHES for HEMCO fume hoods,4',5',& 6' wide. The sash may be lifted to the completely open position for maximum access thru the fume chamber. Sash stops available. |
|
HORIZONTAL SLIDING SASHES For HEMCO fume hoods, 8' 10', & 12' wide. The maximum sash opening for the horizontal sash is 1/2
that of the vertical sashes. The smaller opening, means less air exhausted resulting in energy savings. |
|
|
|
LE FM Floor Mount (Walk-In) Fume Hoods |
|
 |

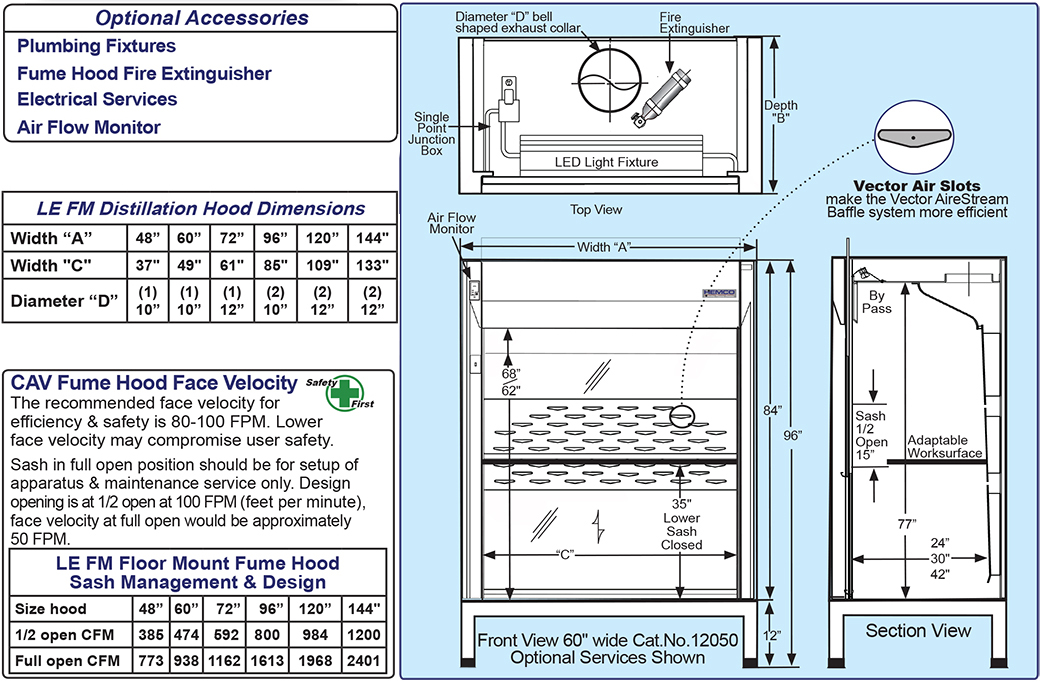

UniFlow LE FM Walk-In Specifications |
(B) Depth |
Fume Hood Width "A" |
48" |
60" |
72" |
96" |
120" |
144" |
| 1. UniFlow LE FM Floor Mounted CAV Bypass Fume Hood with Vapor-Proof Light:Super structure to be modular composite chemical resistant FRP non-metal construction. Interior fume chamber to be glass-smooth with bell shaped exhaust collar. Picture frame upper and lower sash opening with counterbalanced upper and lower sashes of clear tempered safety glass with chemical resistant PVC framing, track, and aerodynamic sash lift. Vapor proof LED light fixture and control switch are wired to a single point junction box. 115/60Hz, AC All electrical components are U.L. listed. |
30" |
12040 |
12050 |
12060 |
12080 |
12100 |
12120 |
36" |
12043 |
12053 |
12063 |
12083 |
12103 |
12123 |
48" |
12044 |
12054 |
12064 |
12084 |
12104 |
12124 |
| 2. UniFlow LE Fume Hood with VAV: Same as #1 above except equipped with vapor proof light fixture and VAV. |
30" |
12145 |
12155 |
12165 |
12185 |
12105 |
12125 |
36" |
12146 |
12156 |
12166 |
12186 |
12106 |
12126 |
48" |
12147 |
12157 |
12167 |
12187 |
12107 |
12127 |
| 3. UniFlow LE Fume Hood with Explosion-Proof Light: Same as #1 above except equipped with explosion proof vapor tight light fixture. Class I Div II Group A B C & D, Class II Div II Group F & G, 115/ 230V, 50/60Hz U.L. listed fixture is installed but must be field wired to comply with local codes. |
30" |
12142 |
12152 |
12162 |
12182 |
12012 |
12112 |
36" |
12143 |
12153 |
12163 |
12183 |
12013 |
12113 |
48" |
12148 |
12154 |
12164 |
12184 |
12014 |
12114 |
| 4. UniFlow LE Fume Hood International Configuration: Same as #1 above except equipped to comply to international electrical configuration. 220V/50Hz AC. Optional international electrical configuration, electrical switches, receptacles and exhaust blowers available. |
30" |
12440 |
12450 |
12460 |
12480 |
12430 |
12420 |
36" |
12243 |
12253 |
12263 |
12283 |
12233 |
12223 |
48" |
12244 |
12254 |
12264 |
12284 |
12234 |
12224 |
| 5. Distillation Base Table: Heavy duty welded steel tube table with chemical resistant epoxy powder coat finish, and dished phenolic resin worksurface. Offered in 12" height. |
30" |
54818 |
56018 |
57218 |
59618 |
510018 |
512018 |
36" |
54838 |
56038 |
57238 |
59638 |
510038 |
512038 |
48" |
54848 |
56048 |
57248 |
59648 |
510048 |
512048 |
| 6. Horizontal Sliding Doors: for 96”, 120” and 144” hoods only |
FMHS-8 |
FMHS-10 |
FMHS-12 |
| 7. Adaptable Worksurface phenolic resin worksurface is provided to slide into place at desired height. Can then be removed for larger equipment. |
30" |
21415 |
21515 |
21615 |
21815 |
211015 |
211215 |
36" |
21424 |
21525 |
21625 |
21825 |
211025 |
211225 |
48" |
21435 |
21535 |
21635 |
21835 |
211035 |
211235 |
|
|
