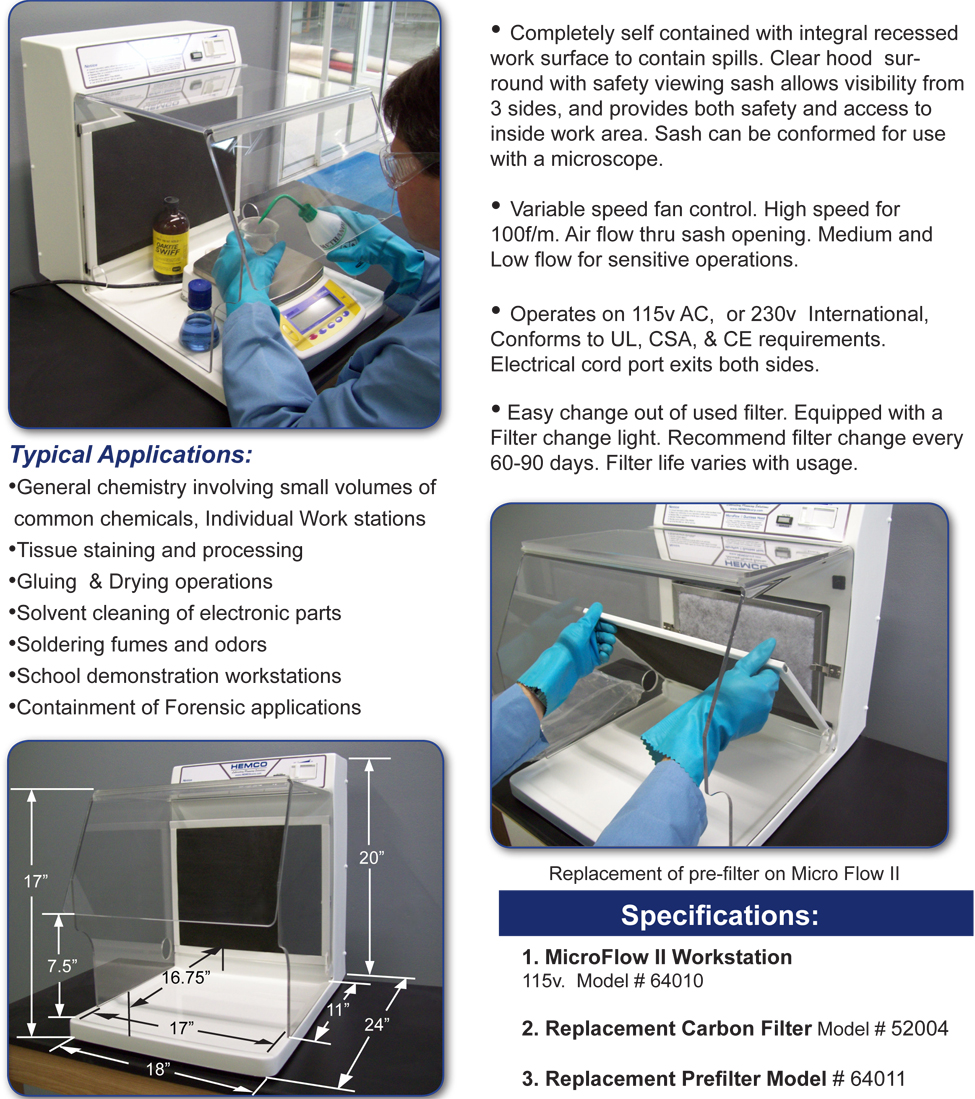

| MicroFlow II Filtered Workstation |
| The MicroFlow II Workstation ideal for: A class 1 ductless hood workstation. Equipped with Activated Carbon filtration, for fumes, odors, non-hazardous chemical vapors and pre-filter for particulate filtration. |
 |
• Completely self contained with clear hood surround with safety
viewing sash for user. |
| • Clear hood surround with safety viewing sash allows visibility from 3 sides, and provides both safety and access to inside work area. Sash can be conformed for use with a microscope. |
| • Integral work surface dished to contain spills. |
| • Variable speed fan control. High speed 100fpm to Low speed minimum air flow for sensitive operations. |
| • Operates on 115V AC / 60Hz, or 230V AC / 50Hz International, Conforms to UL, CSA, & CE requirements. |
• 6' Electrical cord connects and disconnects at left rear side
exits left side. |
| • Easy change out of used filter. Recommend filter change every 60-90 days or sooner. Filter life varies with usage. |
• Filter is removed and replaced inside the fume chamber for
user safety. |
| • Dimensions 18” wide X 24” deep X 20” high allows for easy access with hands and forearms. |
|
| Typical Applications: |
•General chemistry involving small volumes of
common chemicals, Individual Work stations |
| • Tissue staining and processing |
| • Gluing & Drying operations |
| • Solvent cleaning of electronic parts |
| • Soldering fumes and odors |
| • School demonstration workstations |
| • Containment of Forensic applications |
 |
Rule: hazardous chemicals require use of gloves & safety glasses |
| Specifications: |
1. MicroFlow II Ductless Workstation Model # 64010
2. Replacement Carbon Filter Model # 52004
3. Replacement Prefilter Model # 64011 |
|
 |
| Micro Flow II rear view |
 |
 |
 |
| MicroFlow II |
Replacement of pre-filter on MicroFlow II |
Replacement of carbon filter on Micro Flow II |
|
| Click for Maintenance Manual |
| C-Frame Table |
| The C - Frame Table is designed to support Demonstration Hoods, VSE Enclosures and light weight laboratory equipment. |
 |
| • Mobile Table: Sizes from 30”, 36” & 48” wide |
• 36” Standard Height
|
• Constructed of 1” X 2”, 16 gauge rectangular tubing, with
welded construction
|
| • (4) adjustable leg levelers included |
• Epoxy Resin Work Surface measures 3/4” thick X 24” deep X
Length depending upon size |
• Powder Coated finish resists chemicals Color: White
|
|
|
C-Frame table is designed to hold:
• MicroFlow I Workstations
• MicroFlow II Workstations
• MicroFlow III Workstations
• Demonstration Hoods
• VSE Vented Safety Enclosures
• Table Top Fume Hoods |
|
| Cat. No. |
Width "A" |
Height "B" |
| 50303 |
36” |
28" Sitting |
| 50303 |
36" |
36" Sitting |
| 50403 |
48" |
28" Sitting |
| 50403 |
48" |
36" Sitting |
|
 |
|
|
|
|
